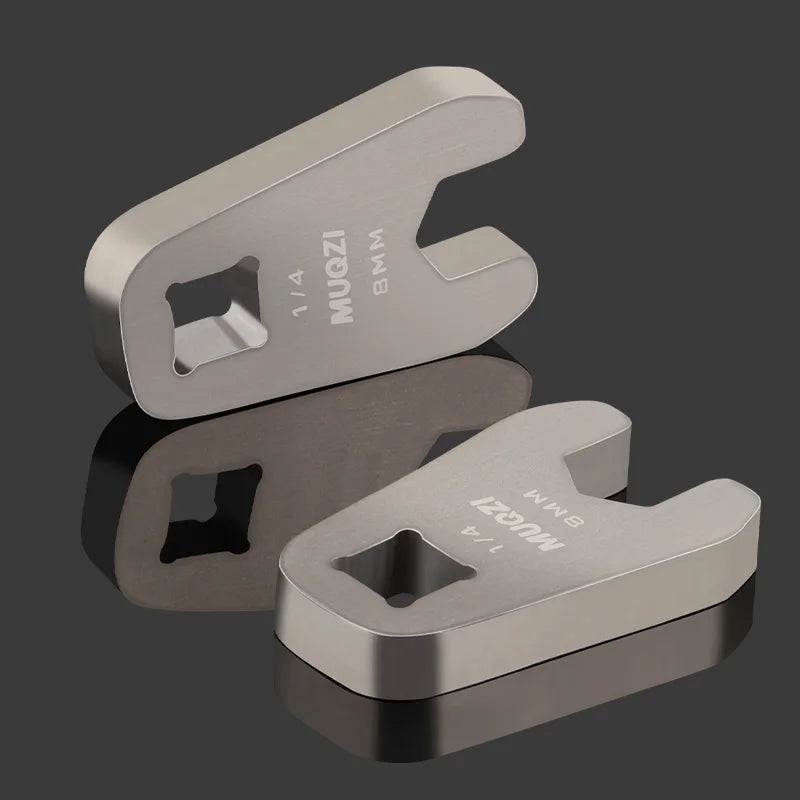

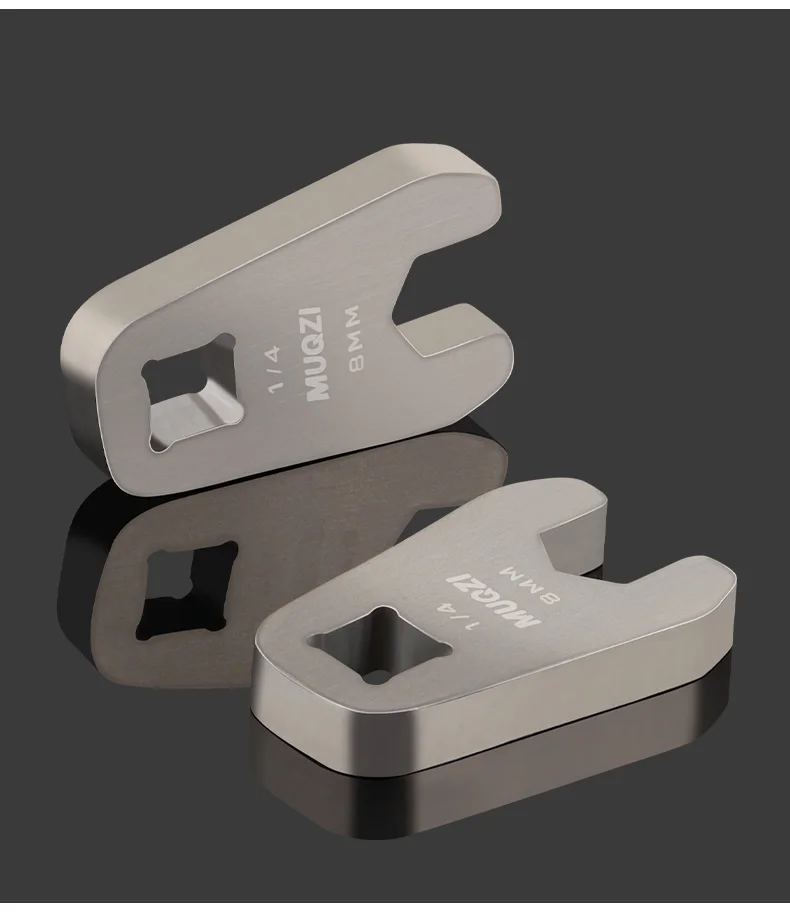

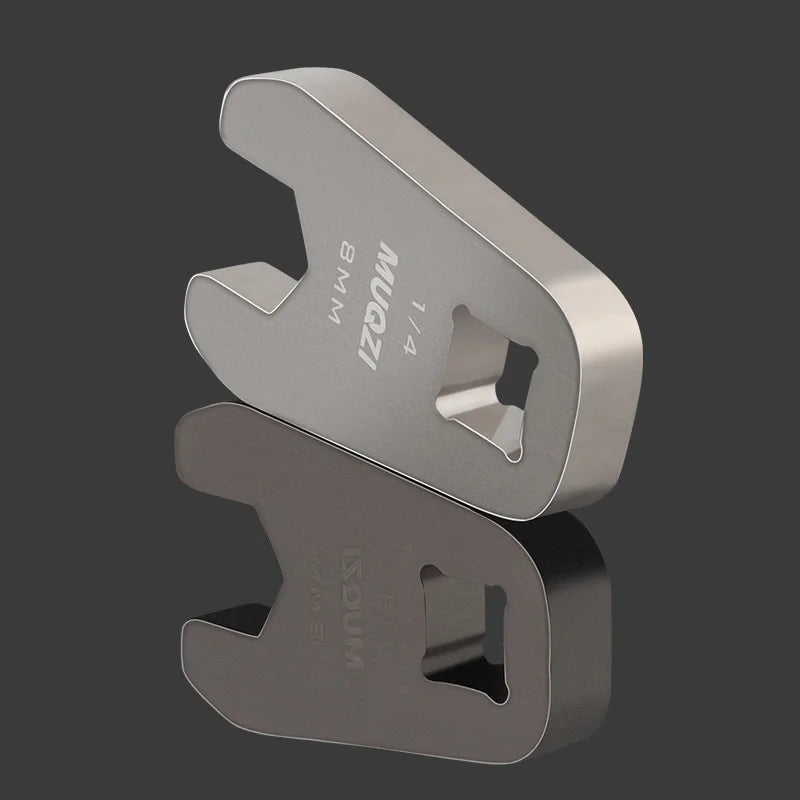

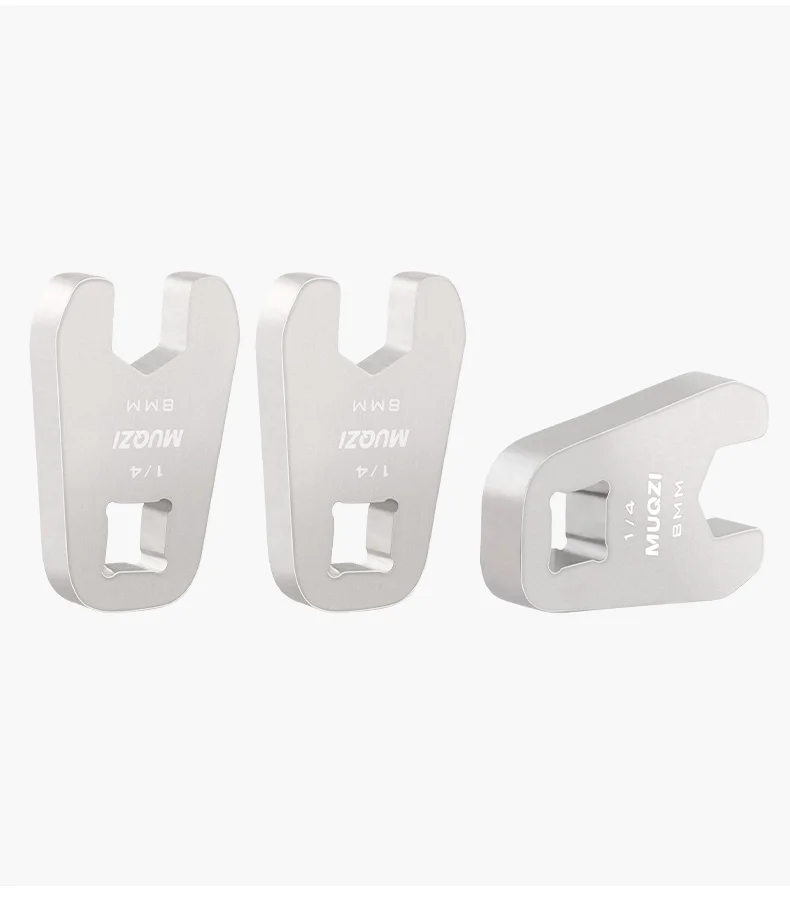

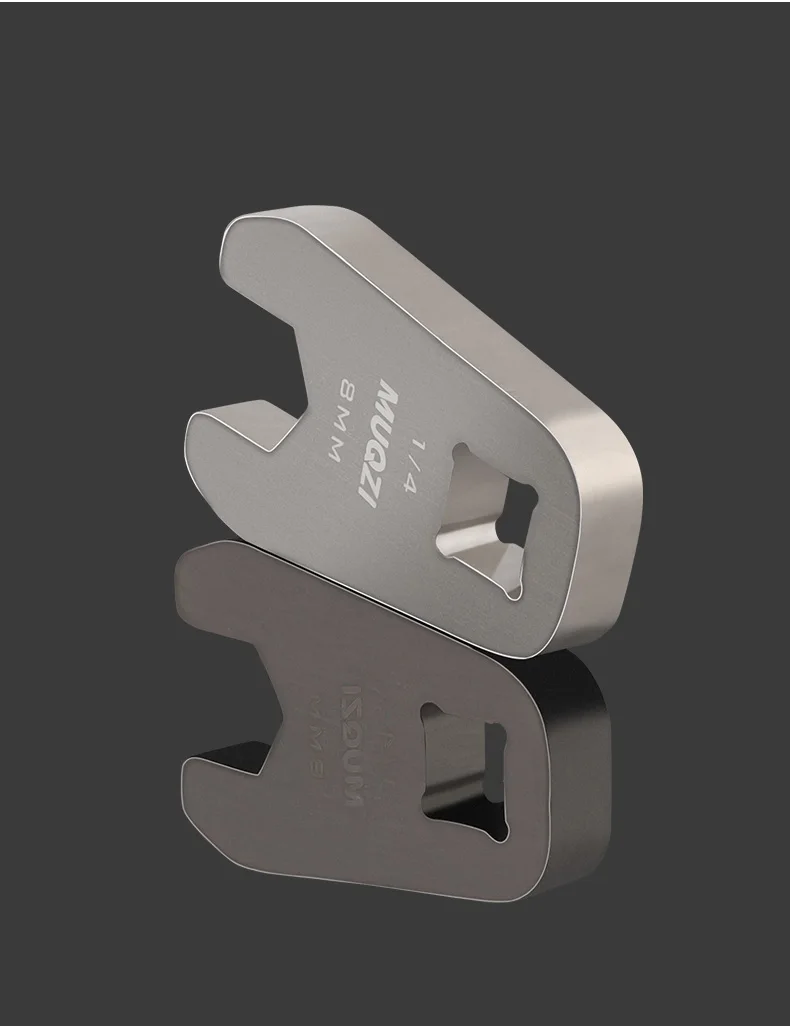

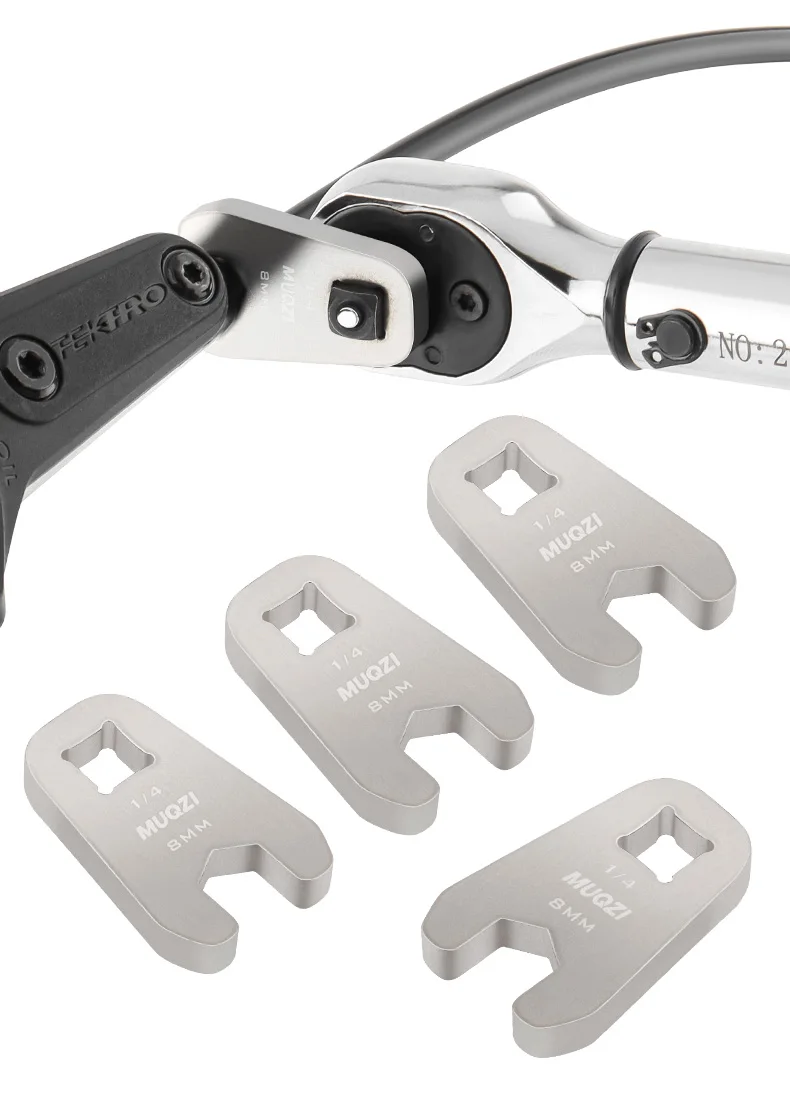

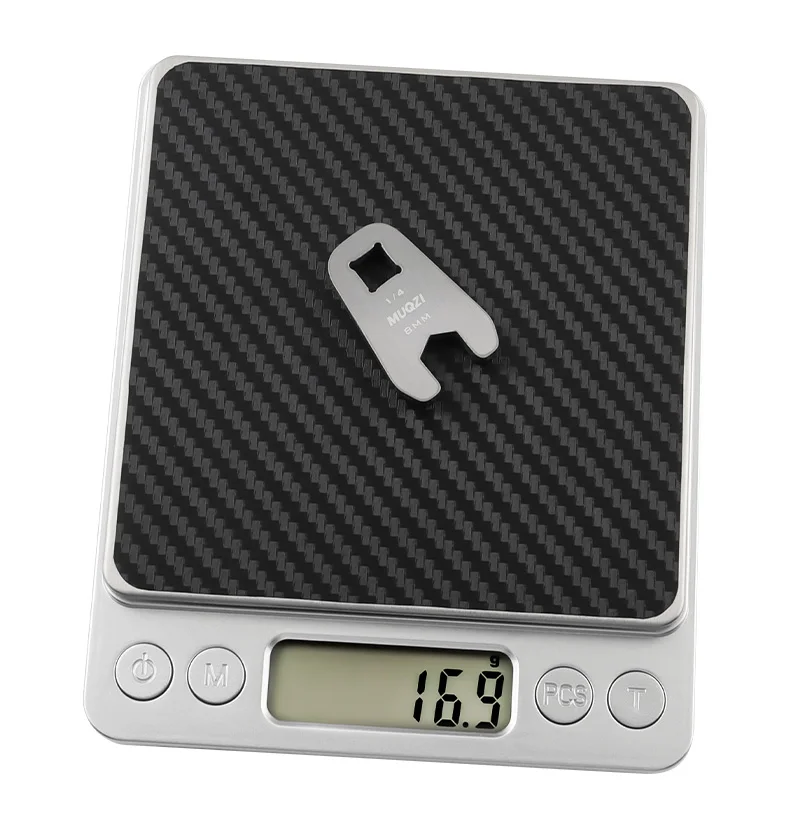

Llave de conexión a llave de torque para flexible

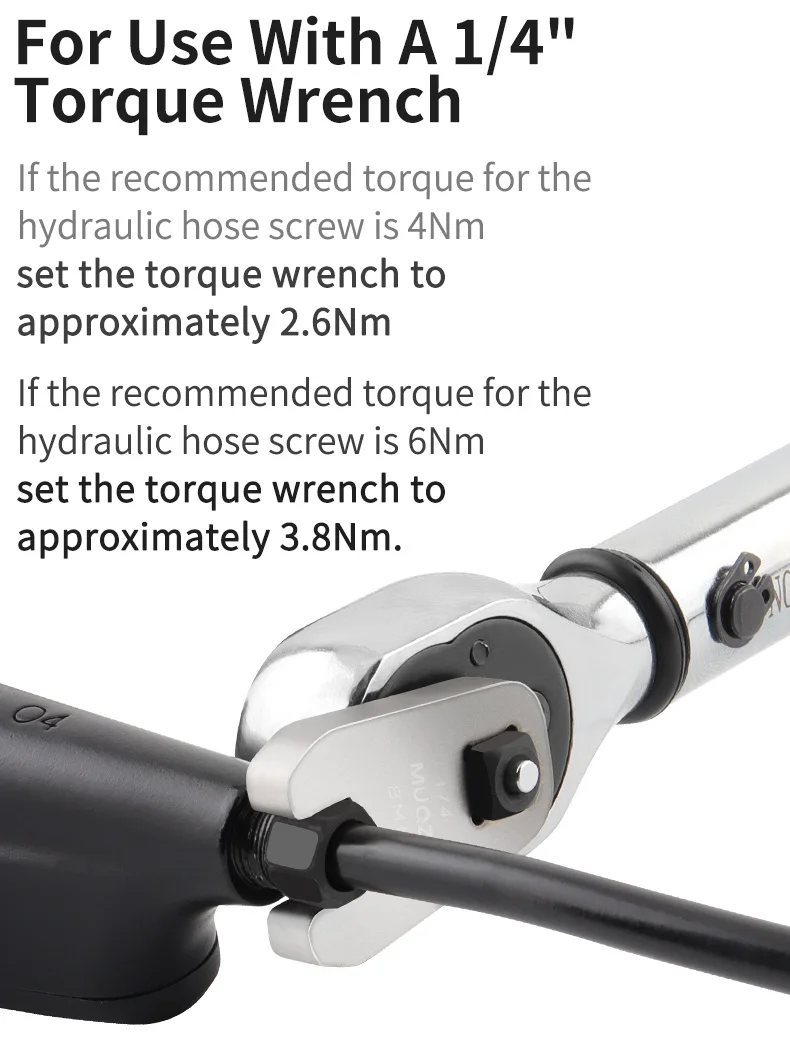

For use with a 1/4" torque wrench

If the recommended torque for the hydraulic hose screw is 4Nm,
set the torque wrench to approximately 2.6Nm.
If the recommended torque for the hydraulic hose screw is 6Nm,
set the torque wrench to approximately 3.8Nm.

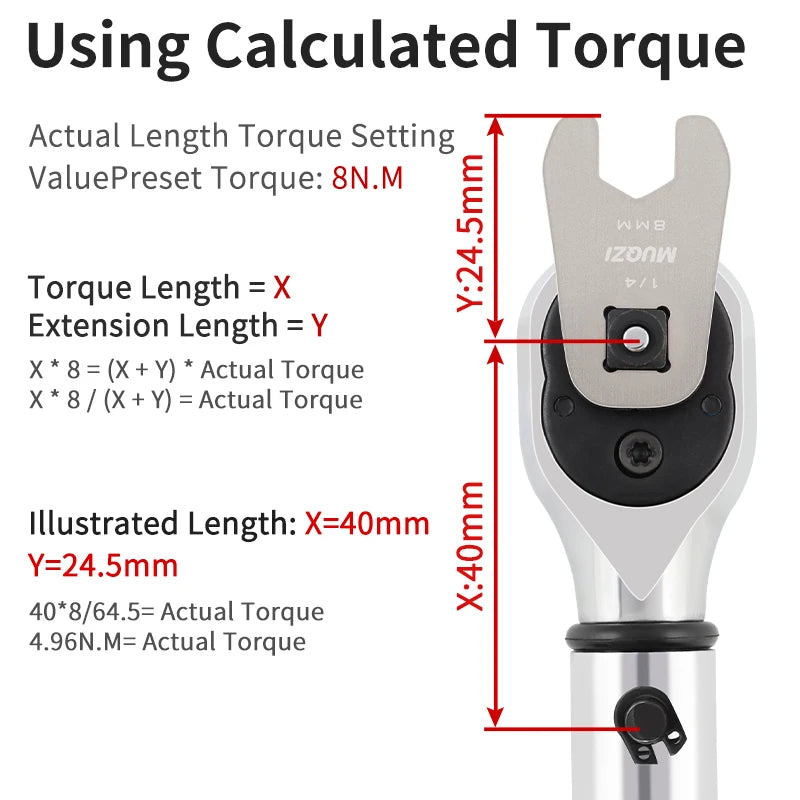

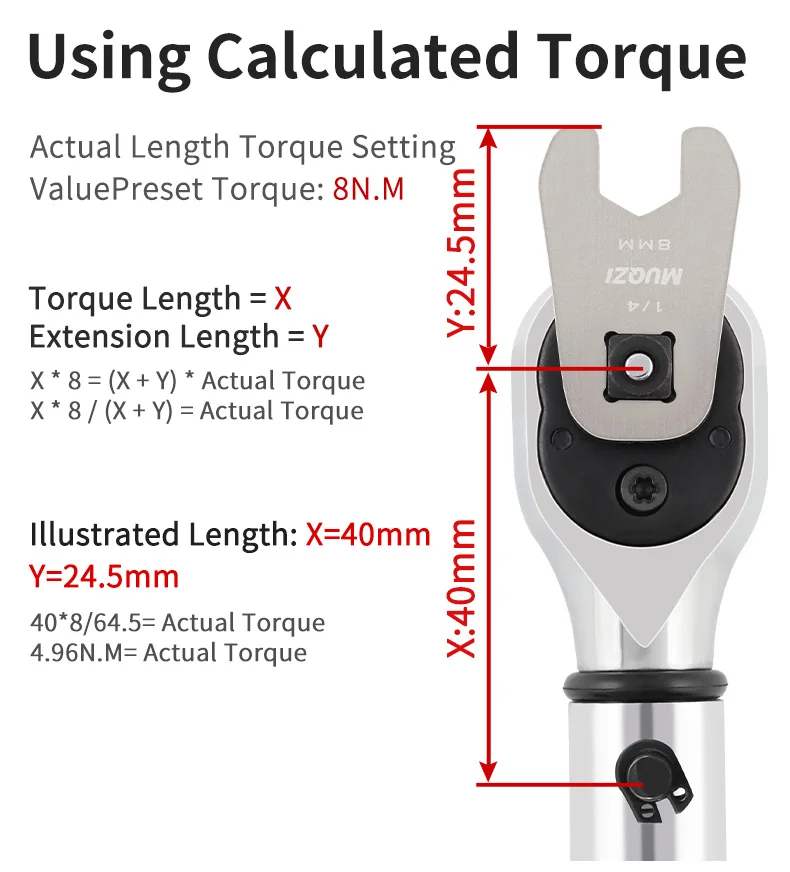

Actual Length Torque Setting Value
Preset Torque: 8N.M
Torque Length = X
Extension Length = Y
X * 8 = (X + Y) * Actual Torque
X * 8 / (X + Y) = Actual Torque
Illustrated Length: X = 40mm
Y = 24.5mm
40 * 8 / 64.5 = Actual Torque
4.96N.M = Actual Torque
